1. Many2One

1.1 数据建模

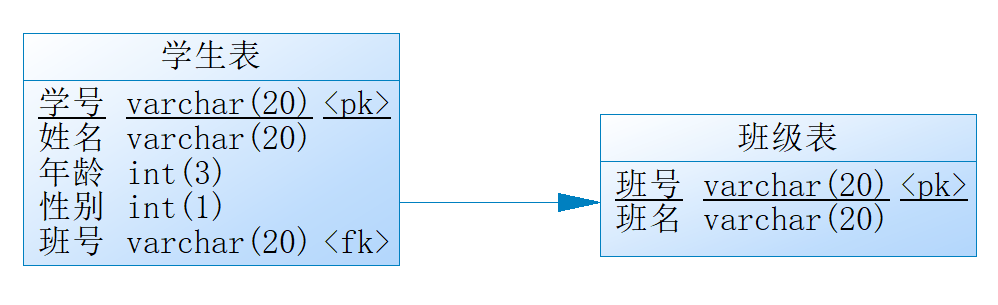

关系图

image-20230202151532563

表结构

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
drop table if exists t_clazz;

/*==============================================================*/
/* Table: t_clazz 父 */
/*==============================================================*/
create table t_clazz
(
bno varchar(20) not null,
name varchar(20),
primary key (bno)
);

alter table t_clazz comment '班级表';

drop table if exists t_student;

/*==============================================================*/
/* Table: t_student 子 */
/*==============================================================*/
create table t_student
(
sid varchar(20) not null comment '学号 主键',
name varchar(20) comment '姓名',
age int(3) comment '年龄',
sex int(1) comment '性别 0 男 1 女',
bno varchar(20),
primary key (sid)
);

alter table t_student comment '学生信息表';

alter table t_student add constraint FK_stu_clazz_bno foreign key (bno)
references t_clazz (bno) on delete restrict on update restrict;

表数据

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
public abstract class BaseTest {
protected JDBCTemplate jdbcTemplate = new JDBCTemplate() ;
// 初始化 测试环境
@Before
public void before(){
//清空表数据 truncate table 截断表 无法使用 关联关系 先删除儿子 在删除爹
jdbcTemplate.update("delete from t_student ") ;
jdbcTemplate.update("delete from t_clazz ") ;

//插入班级数据
jdbcTemplate.update("insert into t_clazz(bno,name) values ('B001','Java177')") ;
jdbcTemplate.update("insert into t_clazz(bno,name) values ('B002','Java178')") ;
//插入 68 条测试数据
for (int i = 0; i < 68; i++) {
jdbcTemplate.update("insert into t_student(sid,name,age,sex,bno) values ('S"+(i+1)+"','张三"+(i+1)+"',18,0,'B001')") ;
}
}

}

1.2 领域建模

1
2
3
4
public class Clazz {
private String bno ;
private String name ;
}
1
2
3
4
5
6
7
public class Student {
private String sid ;
private String name ;
private Integer age ;
private Integer sex ;
private Clazz clazz = new Clazz() ;
}

1.3 列表

DAO

1
2
-- 分页查询的SQL:
select sid,s.name,age,sex,c.bno "clazz.bno",c.name "clazz.name" from t_student s left join t_clazz c on s.bno = c.bno where 1=1
1
2
3
4
5
// t_student表 t_clazz表 同名列 二义性 条件查询需指定 哪个表的name
if (query!=null && StringUtils.isNotEmpty(query.getName())) {
sb.append(" and s.name like ?") ;
paramList.add("%"+query.getName()+"%");
}

jsp

list-stu.jsp

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
<table class="table table-striped table-bordered table-hover">
<thead>
<tr>
<th><input type="checkbox" /></th>
<th>学号</th>
<th>姓名</th>
<th>年龄</th>
<th>性别</th>
<th>班号</th>
<th>班名</th>
<th>操作</th>
</tr>
</thead>
<tbody>
<c:forEach items="${studentPage.list}" var="student">
<tr>
<td><input type="checkbox" name="sid" value="${student.sid}" /></td>
<td>${student.sid}</td>
<td>${student.name}</td>
<td>${student.age}</td>
<td>${student.sex eq 0 ?"男":"女"}</td>
<td>${student.clazz.bno}</td>
<td>${student.clazz.name}</td>
<td>
<a href="${pageContext.request.contextPath}/view-stu.do?sid=${student.sid}" class="btn btn-info btn-sm">修改</a>
<a href="${pageContext.request.contextPath}/del-stu.do?sid=${student.sid}" class="btn btn-danger btn-sm">删除</a>
</td>
</tr>
</c:forEach>
</tbody>
</table>

1.4 新增before

DAO

1
2
3
public interface ClazzDAO {
List<Clazz> selectAll() ;
}
1
2
3
4
5
6
7
8
9
10
11
public class ClazzDAOImpl implements ClazzDAO {
private JDBCTemplate jdbcTemplate = new JDBCTemplate() ;

@Override
public List<Clazz> selectAll() {
String DQL = "select bno,name from t_clazz" ;
Object[] paramAy = {} ;
return jdbcTemplate.queryList(DQL,Clazz.class,paramAy);
}

}

Service

1
2
3
4
5
6
7
8
9
10
11
12
public class ClazzService {
private ClazzDAO clazzDAO = new ClazzDAOImpl() ;

/**
* 查询所有班级
* @return
*/
public Collection<Clazz> list(){
return clazzDAO.selectAll();
}

}

Controller

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
@WebServlet(..."/toAddView-stu.do"})
public class StudentServlet extends HttpServlet {
private ClazzService clazzService = new ClazzService() ;

... service(..){
else if ("/toAddView-stu.do".equals(requestURI)){
this.toAddView(request,response) ;
}
}

//跳转到新增学生界面
protected void toAddView(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
Collection<Clazz> clazzList = clazzService.list();
request.setAttribute("clazzList",clazzList);
request.getRequestDispatcher("/add-stu.jsp").forward(request,response);
}
}

Jsp

list-stu.jsp

1
<a href="${pageContext.request.contextPath}/toAddView-stu.do" class="btn btn-primary">添加学生</a>

add-stu.jsp

1
2
3
4
5
6
7
8
9
10
11
<%@taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>

<div class="form-group">
<label for="age">班级</label>
<select name="clazz.bno">
<option value="">--请选择班级--</option>
<c:forEach items="${clazzList}" var="clazz">
<option value="${clazz.bno}">${clazz.name}</option>
</c:forEach>
</select>
</div>

1.5 新增

DAO

1
2
3
4
5
6
@Override
public boolean insert(Student student) {
String DQL = "insert into t_student(sid,name,age,sex,bno) values (?,?,?,?,?)" ;
Object[] paramAy = {student.getSid(),student.getName(),student.getAge(),student.getSex(),student.getClazz().getBno()} ;
return jdbcTemplate.update(DQL,paramAy);
}

Controller

1
2
//重定向 进行查询
response.sendRedirect(request.getContextPath()+"/page-stu.do");

1.6 查看

jsp

modify-stu.jsp

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>

<div class="form-group">
<label for="age">班级</label>
<select name="clazz.bno" class="form-control">
<option value="">--请选择班级--</option>
<c:forEach items="${clazzList}" var="clazz">
<option value="${clazz.bno}">${clazz.name}</option>
</c:forEach>
</select>
</div>


//设置下拉框被选中
$("select").val("${student.clazz.bno}")

Controller

1
2
3
4
5
6
7
8
9
10
11
12
protected void view(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
//1.获得查看的学生编号
String sid = request.getParameter("sid");
//2.调用业务方法
Student student = studentService.get(sid);
//3.request作用域中设置 学生信息
request.setAttribute("student",student);
Collection<Clazz> clazzList = clazzService.list();
request.setAttribute("clazzList",clazzList);
//4.跳转页面 服务器内部跳转
request.getRequestDispatcher("/modify-stu.jsp").forward(request,response);
}

DAO

1
String DQL = "select sid,s.name,age,sex,c.bno \"clazz.bno\",c.name \"clazz.name\" from t_student s left join t_clazz c on s.bno = c.bno where s.sid=?" ;

1.7 修改

DAO

1
2
3
4
5
6
@Override
public boolean update(Student student) {
String DQL = "update t_student set name=?,age=?,sex=?,bno=? where sid=?" ;
Object[] paramAy = {student.getName(),student.getAge(),student.getSex(),student.getClazz().getBno(),student.getSid()} ;
return jdbcTemplate.update(DQL,paramAy);
}

2. One2Many

2.1 列表[单表]

controller

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
@WebServlet(name = "ClazzServlet",urlPatterns = {"/list-clazz.do"})
public class ClazzServlet extends HttpServlet {
/** 班级业务实例 */
private ClazzService clazzService = new ClazzService() ;

protected void service(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
//1.获得请求的url 包含项目名
String requestURI = request.getRequestURI();
//2. 去掉项目名 /list-stu.do /add-stu.do
requestURI = requestURI.replace(request.getContextPath(),"");
//3.判断 url 与方法 调用
if ("/list-clazz.do".equals(requestURI)){
this.list(request,response) ;
}
}

/**
*
* @param request
* @param response
* @throws ServletException
* @throws IOException
*/
protected void list(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
//1. 调用业务方法
Collection<Clazz> clazzCollection = clazzService.list();
//2. 把查询数据保存 四种(pageContext,request,session,application)属性作用域中 set ==> list-stu.jsp get
request.setAttribute("clazzList",clazzCollection);
//3. 跳转到 list-stu.jsp
request.getRequestDispatcher("/list-clazz.jsp").forward(request,response);
}
}

jsp

index.jsp

1
<a href="${pageContext.request.contextPath}/list-clazz.do">班级列表</a> <br>

list-clazz.jsp

1
2
3
4
5
6
7
8
9
10
11
 <c:forEach items="${clazzList}" var="clazz">
<tr>
<td><input type="checkbox" name="bno" value="${clazz.sid}" /></td>
<td>${clazz.bno}</td>
<td>${clazz.name}</td>
<td>
<a href="${pageContext.request.contextPath}/view-clazz.do?sid=${clazz.bno}" class="btn btn-info btn-sm">修改</a>
<a href="${pageContext.request.contextPath}/del-clazz.do?sid=${clazz.bno}" class="btn btn-danger btn-sm">删除</a>
</td>
</tr>
</c:forEach>

2.2 新增准备【裸跳页面】

逻辑上: 直接怼到页面 比如 add-clazz.jsp

OCP A. 代码复用 B.新增班级 【权限访问控制?当前登录用户是否有权限?】

jsp

list-clazz.jsp

1
<a href="${pageContext.request.contextPath}/toAddView-clazz.do" class="btn btn-primary">添加班级</a>

add-clazz.jsp

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
<h1>新增班级</h1>
<form action="${pageContext.request.contextPath}/add-clazz.do" method="post">
<div class="form-group">
<label for="sid">班号</label>
<input
type="text"
class="form-control"
id="sid"
name="bno"
value="${param.bno}"
placeholder="请输入班号"
/>
</div>
<div class="form-group">
<label for="sname">班名</label>
<input
type="text"
class="form-control"
id="sname"
name="name"
value="${param.name}"
placeholder="请输入班名"
/>
</div>
<div class="form-group" style="text-align: center">
<button type="submit" class="btn btn-primary">新增</button>
<button type="submit" class="btn btn-default">重置</button>
</div>
</form>

Controller

1
2
3
4
5
6
7
8
9
10
11
//  ClazzServlet
@WebServlet(name = "ClazzServlet",urlPatterns = {"/list-clazz.do","/toAddView-clazz.do"})
....
else if("/toAddView-clazz.do".equals(requestURI)){
this.toAddView(request,response) ;
}

//跳转到新增班级界面
protected void toAddView(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
request.getRequestDispatcher("/add-clazz.jsp").forward(request,response);
}

2.3 新增【单表】

controller

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
//添加新的请求 url
@WebServlet(name = "ClazzServlet",urlPatterns = {"/list-clazz.do","/toAddView-clazz.do","/add-clazz.do"})

//添加判断 调用自定义的方法
else if("/add-clazz.do".equals(requestURI)){
this.add(request,response) ;
}


protected void add(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
//1.设置请求中文乱码
request.setCharacterEncoding("UTF-8");
//调用 自定义 工具类 实现:解析请求自动封装 pojo中
Clazz clazz = RequestUtil.parseParameter(request, Clazz.class);
//4. 调用业务方法
boolean saveRs = clazzService.save(clazz);
//5. 根据业务方法的返回值
if (saveRs){
//6.响应
//重定向 进行查询
response.sendRedirect(request.getContextPath()+"/list-clazz.do");
return;
}
//新增失败 view实现显示效果
request.setAttribute("errorMsg","班号已经存在!!!");
//使用服务器内部跳转
request.getRequestDispatcher("/toAddView-clazz.do").forward(request,response);
}

Service

1
2
3
4
5
6
7
8
9
10
11
12
13
... ClazzService {
public boolean save(Clazz clazz) {
//获得新增的班号
String bno = clazz.getBno() ;
//1.判断是否 新增的班号 db 中已经存在
Clazz dbClazz = clazzDAO.selectById(bno);
if (dbClazz!=null){
return false ;
}
//班号不存在 向数据库插入数据
return clazzDAO.insert(clazz) ;
}
}

DAO

1
2
3
4
5
... ClazzDAO{
Clazz selectById(String bno);

boolean insert(Clazz clazz);
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
... ClazzDAOImpl ... {
@Override
public Clazz selectById(String bno) {
String DQL = "select bno,name from t_clazz where bno=?" ;
Object[] paramAy = {bno} ;
return jdbcTemplate.queryObject(DQL,Clazz.class,paramAy);
}

@Override
public boolean insert(Clazz clazz) {
String DQL = "insert into t_clazz(bno,name) values (?,?)" ;
Object[] paramAy = {clazz.getBno(),clazz.getName()} ;
return jdbcTemplate.update(DQL,paramAy);
}
}

2.4 删除【单表/子记录依赖】

jsp

list-clazz.jsp

1
2
3
 <form action='${pageContext.request.contextPath}/del-clazz.do'>
<td><input type="checkbox" name="bno" value="${clazz.bno}" /></td>
<a href="${pageContext.request.contextPath}/del-clazz.do?bno=${clazz.bno}" class="btn btn-danger btn-sm">删除</a>

controller

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
@WebServlet(name = "ClazzServlet",urlPatterns = {"/list-clazz.do","/toAddView-clazz.do","/add-clazz.do","/del-clazz.do"})

else if("/del-clazz.do".equals(requestURI)){
this.del(request,response) ;
}

protected void del(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
//1.获得 删除的班号
String[] idAy = request.getParameterValues("bno");
//把数组 拼接成一个 字符串
String id ="";
for (String s : idAy) {
id +=s+"," ;
}
id = id.substring(0,id.length()-1) ;
//2. 调用业务方法
boolean removeRs = clazzService.remove(id);
String msg = removeRs?"":"del-fail" ;
response.sendRedirect(request.getContextPath()+"/list-clazz.do?msg="+msg);
}

Service

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
public class ClazzService {
private StudentDAO studentDAO = new StudentDAOImpl() ;

public boolean remove(String id) {
//字符串 转成数组
String[] sidAy = id.split(",");
for (String bno : sidAy) {
//根据FK 查询学生列表
List<Student> studentList = studentDAO.selectByFk(bno);
//删除班级编号 在学生表中出现了 不能删除
if (!studentList.isEmpty()){
return false ;
}
}
//调用批处理删除
return clazzDAO.delete(sidAy) ;
}
}

DAO

StudentDAO
1
List<Student> selectByFk(String bno) ;
1
2
3
4
5
6
@Override
public List<Student> selectByFk(String bno) {
String DQL = "select sid,name,age,sex from t_student where bno=?" ;
Object[] paramAy = {bno} ;
return jdbcTemplate.queryList(DQL,Student.class,paramAy);
}
ClazzDAO
1
boolean delete(String ... idAy) ;
1
2
3
4
5
6
7
8
9
10
11
12
public class ClazzDAOImpl implements ClazzDAO {
@Override
public boolean delete(String... sidAy) {
String DML = "delete from t_clazz where bno=?" ;
Object[][] paramAy = new Object[sidAy.length][1] ;
for (int i = 0; i < sidAy.length; i++) {
paramAy[i][0] = sidAy[i] ;
}
return jdbcTemplate.updateBatch(DML,paramAy);
}

}

2.5 查看【N+1】

jsp

list-clazz.jsp

1
<a href="${pageContext.request.contextPath}/view-clazz.do?bno=${clazz.bno}" class="btn btn-info btn-sm">修改</a>

modify-clazz.jsp

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
<input
type="text"
class="form-control"
id="sname"
name="name"
value="${clazz.name}"
placeholder="请输入班名"
/>

<c:forEach items="${clazz.studentList}" var="student">
<tr>
<td>${student.sid}</td>
<td>${student.name}</td>
<td>${student.age}</td>
<td>${student.sex eq 0 ?"男":"女"}</td>
</tr>
</c:forEach>

Controller

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
@WebServlet(name = "ClazzServlet",urlPatterns = {"/list-clazz.do","/toAddView-clazz.do","/add-clazz.do","/del-clazz.do","/view-clazz.do"})

else if("/view-clazz.do".equals(requestURI)){
this.view(request,response) ;
}


protected void view(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
//1.获得查看的学生编号
String bno = request.getParameter("bno");
//2.调用业务方法
Clazz clazz = clazzService.get(bno) ;
//3.request作用域中设置 学生信息
request.setAttribute("clazz",clazz);
//4.跳转页面 服务器内部跳转
request.getRequestDispatcher("/modify-clazz.jsp").forward(request,response);
}

Service

1
2
3
4
5
6
7
8
9
10
 public Clazz get(String bno) {
//N+1查询
//1. 根据班级id 查询 班级对象 单表查询
Clazz clazz = clazzDAO.selectById(bno);
//2. 根据班级id 查询当前班级的学生列表 单表查询
List<Student> studentList = studentDAO.selectByFk(bno);
//3.当前班级对象的 stuList属性进行赋值
clazz.setStudentList(studentList);
return clazz ;
}

2.6 修改【单表】

jsp

modify-clazz.jsp

1
2
<form action="${pageContext.request.contextPath}/modify-clazz.do" method="post">
....

controller

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
@WebServlet(name = "ClazzServlet",urlPatterns = {"/list-clazz.do","/toAddView-clazz.do","/add-clazz.do","/del-clazz.do","/view-clazz.do","/modify-clazz.do"})


else if("/modify-clazz.do".equals(requestURI)){
this.modify(request,response) ;
}

protected void modify(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
//1.设置请求中文乱码
request.setCharacterEncoding("UTF-8");
//调用 自定义 工具类 实现:解析请求自动封装 pojo中
Clazz clazz = RequestUtil.parseParameter(request, Clazz.class);
//4. 调用业务方法
boolean modifyRs = clazzService.modify(clazz);
//5. 根据业务方法的返回值
if (modifyRs){
//6.响应
//重定向 进行查询
response.sendRedirect(request.getContextPath()+"/list-clazz.do");
return;
}
request.setAttribute("errorMsg","修改班级失败!!!");
request.getRequestDispatcher("/view-clazz.do").forward(request,response);
}

Service

1
2
3
public boolean modify(Clazz clazz) {
return clazzDAO.update(clazz) ;
}

DAO

1
boolean update(Clazz clazz);
1
2
3
4
5
6
@Override
public boolean update(Clazz clazz) {
String DQL = "update t_clazz set name=? where bno=?" ;
Object[] paramAy = {clazz.getName(),clazz.getBno()} ;
return jdbcTemplate.update(DQL,paramAy);
}

3. Many2Many

3.1 数据建模

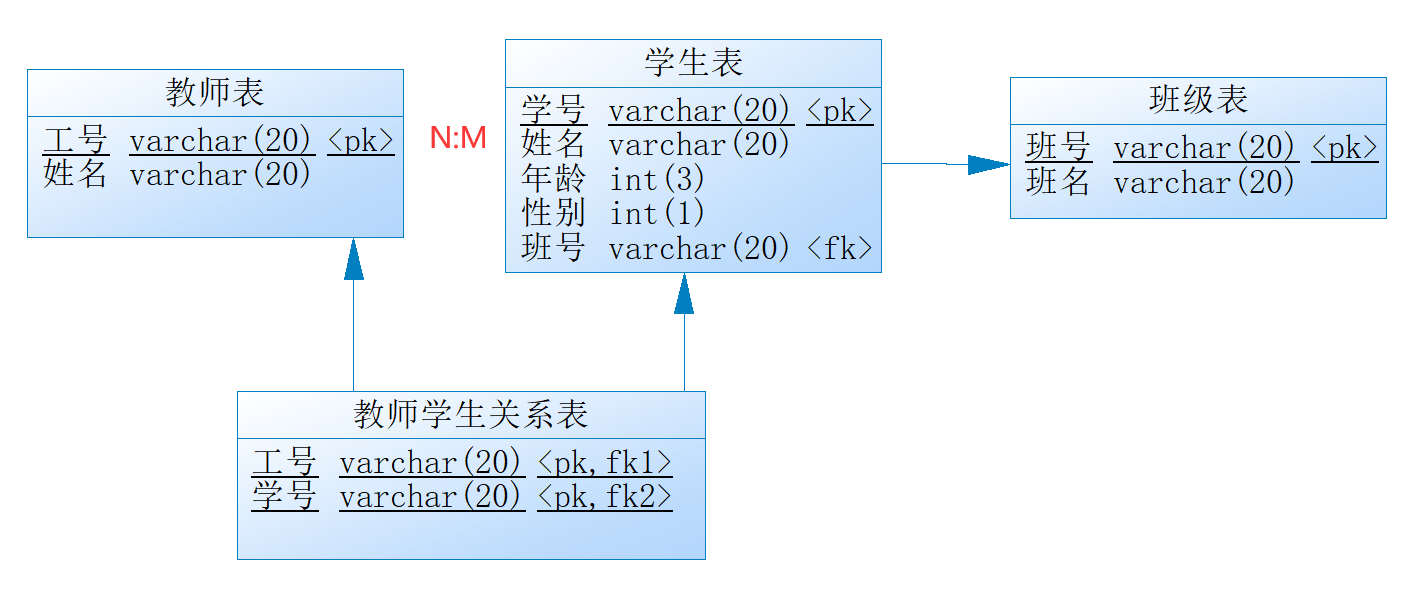

表关系

image-20230203150523130

表结构

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
drop table if exists t_clazz;

/*==============================================================*/
/* Table: t_clazz 父 */
/*==============================================================*/
create table t_clazz
(
bno varchar(20) not null,
name varchar(20),
primary key (bno)
);

alter table t_clazz comment '班级表';

drop table if exists t_student;

/*==============================================================*/
/* Table: t_student 子 */
/*==============================================================*/
create table t_student
(
sid varchar(20) not null comment '学号 主键',
name varchar(20) comment '姓名',
age int(3) comment '年龄',
sex int(1) comment '性别 0 男 1 女',
bno varchar(20),
primary key (sid)
);

alter table t_student comment '学生信息表';



drop table if exists t_teacher;

/*==============================================================*/
/* Table: t_teacher */
/*==============================================================*/
create table t_teacher
(
tno varchar(20) not null,
tname varchar(20),
primary key (tno)
);

alter table t_teacher comment '教师表';

drop table if exists t_student_teacher;

/*==============================================================*/
/* Table: t_student_teacher */
/*==============================================================*/
create table t_student_teacher
(
tno varchar(20) not null,
sid varchar(20) not null comment '学号 主键',
primary key (tno, sid)
);

alter table t_student_teacher comment '教师学生关系表';

alter table t_student_teacher add constraint FK_stu_teacher_teacher_tno foreign key (tno)
references t_teacher (tno) on delete restrict on update restrict;

alter table t_student_teacher add constraint FK_stu_teacher_stu_sid foreign key (sid)
references t_student (sid) on delete restrict on update restrict;

alter table t_student add constraint FK_stu_clazz_bno foreign key (bno)
references t_clazz (bno) on delete restrict on update restrict;

表数据

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
@Before
public void before(){
//清空表数据 truncate table 截断表 无法使用 关联关系 先删除儿子 在删除爹
jdbcTemplate.update("delete from t_student_teacher ") ;
jdbcTemplate.update("delete from t_teacher ") ;
jdbcTemplate.update("delete from t_student ") ;
jdbcTemplate.update("delete from t_clazz ") ;

//插入班级数据
jdbcTemplate.update("insert into t_clazz(bno,name) values ('B001','Java177')") ;
jdbcTemplate.update("insert into t_clazz(bno,name) values ('B002','Java178')") ;
//插入学生 68 条测试数据
for (int i = 0; i < 68; i++) {
jdbcTemplate.update("insert into t_student(sid,name,age,sex,bno) values ('S"+(i+1)+"','张三"+(i+1)+"',18,0,'B001')") ;
}
//插入教师数据
jdbcTemplate.update("insert into t_teacher(tno,tname) values ('T001','赵贺贺')") ;
jdbcTemplate.update("insert into t_teacher(tno,tname) values ('T002','赵健')") ;
jdbcTemplate.update("insert into t_teacher(tno,tname) values ('T003','马美平')") ;

//插入学生与教师关系表 68*2 条测试数据
for (int i = 0; i < 68; i++) {
jdbcTemplate.update("insert into t_student_teacher(sid,tno) values ('S"+(i+1)+"','T001'),('S"+(i+1)+"','T002')") ;
}
}

3.2 列表

pojo

1
2
3
4
public class Teacher {
private String tno ;
private String tname ;
}
1
2
3
4
5
public class Student {
...
/**Many2Many 一个学生拥有多个老师 */
private List<Teacher> teacherList ;
}

DAO

1
2
3
public interface TeacherDAO {
List<Teacher> selectBySid(String sid) ;
}
1
2
3
4
5
6
7
8
9
public class TeacherDAOImpl implements TeacherDAO {
private JDBCTemplate jdbcTemplate = new JDBCTemplate() ;
@Override
public List<Teacher> selectBySid(String sid) {
String DQL = "select tno,tname from t_teacher where tno in (select tno from t_student_teacher where sid = ?)" ;
Object[] paramAy = {sid} ;
return jdbcTemplate.queryList(DQL, Teacher.class,paramAy);
}
}

service

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
public class StudentService {
private TeacherDAO teacherDAO = new TeacherDAOImpl() ;

public void selectPage(Page<Student, StudentQuery> page){
//1.统计总记录数
long count = studentDAO.count(page.getCond());
//2.查询当前页面的数据
List<Student> studentList = studentDAO.selectPage(page);
//循环所有的学生列表
for (Student student : studentList) {
//根据学号查询老师信息
List<Teacher> teacherList = teacherDAO.selectBySid(student.getSid());
//设置到 当前学生的 关联老师集合属性
student.setTeacherList(teacherList);
}
//3. 设置总记录数
page.setTotalRecord(count);
//4. 设置当前页的数据
page.setList(studentList);
}
}

jsp

list-stu.jsp

1
2
3
4
5
6
<td>
<c:forEach items="${student.teacherList}" var="teacher" varStatus="vs">
${teacher.tname}
<c:if test="${not vs.last}">,</c:if>
</c:forEach>
</td>

3.3 显示关联教师

DAO

1
2
3
public interface TeacherDAO {
List<Teacher> selectAll();
}
1
2
3
4
5
6
7
8
public class TeacherDAOImpl implements TeacherDAO {
@Override
public List<Teacher> selectAll() {
String DQL = "select tno,tname from t_teacher" ;
Object[] paramAy = {} ;
return jdbcTemplate.queryList(DQL, Teacher.class,paramAy);
}
}

Service

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
public class StudentService {
private TeacherDAO teacherDAO = new TeacherDAOImpl() ;

/**
* 根据id 查询学生信息
* @param sid
* @return
*/
public Student get(String sid){
//学生信息 班级信息
Student student = studentDAO.selectById(sid) ;
// N+1 根据学生id 查询关联的教师
List<Teacher> teacherList = teacherDAO.selectBySid(sid);
// 设置当前学生关联的教师信息
student.setTeacherList(teacherList);
return student ;
}
}

Controller

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
@WebServlet(.... "/toSelectView-teacher.do"})


else if ("/toSelectView-teacher.do".equals(requestURI)){
this.toSelectTeacherView(request,response) ;
}


protected void toSelectTeacherView(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
//1.获得学生的id
String sid = request.getParameter("sid");
//2.查询当前学生信息
Student student = studentService.get(sid);
//3.查询所有的老师信息
List<Teacher> teacherList = teacherService.list() ;
//4. 数据存放在作用域中
request.setAttribute("student",student);
request.setAttribute("teacherList",teacherList);
request.getRequestDispatcher("/select-teacher.jsp").forward(request,response);
}

Jsp

list-stu.jsp

1
<a href="${pageContext.request.contextPath}/toSelectView-teacher.do?sid=${student.sid}" class="btn btn-info btn-sm">关联教师</a>

select-teacher.jsp

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
<div class="container">
<h1>学生选择教师</h1>
<div class="widget-content padded clearfix">
<!-- 学生基本信息 -->
<table class="table detail-view">
<tbody>
<tr>
<th>学号</th>
<td>${student.sid}</td>
</tr>
<tr>
<th>姓名</th>
<td>${student.name}</td>
</tr>
<tr>
<th>年龄</th>
<td>${student.age}</td>
</tr>
<tr>
<th>性别</th>
<td>${student.sex eq 0 ?"男":"女"}</td>
</tr>
<tr>
<th>班级</th>
<td>${student.clazz.name}</td>
</tr>

</tbody>
</table>
<!-- 教师信息 -->
<form action="">
<table class="table table-striped table-bordered table-hover">
<thead>
<tr>
<th><input type="checkbox" /></th>
<th>工号</th>
<th>姓名</th>
</tr>
</thead>
<tbody>
<c:forEach items="${teacherList}" var="teacher">
<tr>
<td><input type="checkbox" name="tno" value="${teacher.tno}"/></td>
<td>${teacher.tno}</td>
<td>${teacher.tname}</td>
</tr>
</c:forEach>
</tbody>
</table>
<div class="form-group" style="text-align: center">
<button type="submit" class="btn btn-primary">关联教师</button>
<button type="submit" class="btn btn-default">重置</button>
</div>
</form>
</div>
</div>
<script>
// 循环当前学生的关联老师信息
<c:forEach items="${student.teacherList}" var="teacher">
$(":checkbox[value='${teacher.tno}']").prop('checked',true)
</c:forEach>
</script>

3.4 设置关联教师

jsp

select-teacher.jsp

1
2
3
4
5
6
 <!-- 教师信息 -->
<form action="${pageContext.request.contextPath}/set-teacher.do">
<input type="hidden" name="sid" value="${student.sid}">
....
<tr>
<td><input type="checkbox" name="tno" value="${teacher.tno}"/></td>

DAO

1
2
3
4
5
public interface StudentDAO {
boolean deleteRefBySid(String sid) ;

boolean insertRef(Student student) ;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
public class StudentDAOImpl implements StudentDAO {
@Override
public boolean deleteRefBySid(String sid) {
String DQL = "delete from t_student_teacher where sid = ?" ;
Object[] paramAy = {sid} ;
return jdbcTemplate.update(DQL,paramAy);
}

@Override
public boolean insertRef(Student student) {
//获得当前学生的学号
String sid = student.getSid();
//获得当前学生关联的教师信息
List<Teacher> teacherList = student.getTeacherList();
String DML = "insert into t_student_teacher(sid,tno) values(?,?)" ;
Object[][] paramAy = new Object[teacherList.size()][2] ;
for (int i = 0; i < teacherList.size(); i++) {
//教师信息
Teacher teacher = teacherList.get(i);
paramAy[i][0] = sid ;
paramAy[i][1] = teacher.getTno() ;
}
return jdbcTemplate.updateBatch(DML,paramAy);
}
}

Service

1
2
3
4
5
6
7
8
9
10
public class StudentService {

public boolean setTeacher(Student student){
//1.中间表删除 当前学号 关联所有信息
boolean delRs = studentDAO.deleteRefBySid(student.getSid()) ;
//2.批量新增 中间表 关联信息
boolean insertRs = studentDAO.insertRef(student) ;
return delRs && insertRs ;
}
}

controller

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
@WebServlet(..."/set-teacher.do"})

else if ("/set-teacher.do".equals(requestURI)){
this.setTeacher(request,response) ;
}


protected void setTeacher(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
// 获得学生的id
String sid = request.getParameter("sid");
// 关联的教师工号
String[] tnoAy = request.getParameterValues("tno");
//封装学生对象
Student student = new Student();
student.setSid(sid);
List<Teacher> teacherList = new ArrayList<>() ;
for (String tno : tnoAy) {
Teacher teacher = new Teacher();
teacher.setTno(tno);
teacherList.add(teacher);
}
//设置关联关系
student.setTeacherList(teacherList);
boolean rs = studentService.setTeacher(student) ;
//重新查询
response.sendRedirect(request.getContextPath()+"/page-stu.do");
}

评论
