1.接口文档

概念及说明

我们使用的 url,数据接口,或者简称为接口。

接口是服务器提供的一个url地址,通过这个url地址,我们可以操作服务器上的资源。

通过Ajax技术向一个接口发送请求,也叫做调用接口。

  • 接口是谁设计的呢
    • 后端设计的(学java的、学php的同学、…..)
    • 后端设计完接口之后,会提供一个接口文档给前端开发工程师
  • 一个好的接口文档,至少需要包含下面几项内容
    • 接口说明(通过接口说明,大致了解到接口是干什么用的)
    • 接口的url(发送ajax请求,必要的条件)
    • 接口请求方式(发送ajax请求,必要的条件)
    • 请求参数(参数名称、数据类型、是否必填、参数说明等)
    • 响应格式
    • 响应示例

请求的根路径

http://localhost:8080/day19-02-ajax

图书管理

1.1 图书列表

  • 接口URL: /api/getbooks
  • 调用方式: GET
  • 参数格式:
参数名称 参数类型 是否必选 参数说明
id String 图书Id
bookname String 图书名称
author String 作者
publisher String 出版社
  • 响应格式:
数据名称 数据类型 说明
status Number 200 成功;500 失败;
msg String 对 status 字段的详细说明
data Array 图书列表
+id String 图书Id
+bookname String 图书名称
+author String 作者
+publisher String 出版社
  • 返回示例:
1
2
3
4
5
6
7
8
9
{
"status": 200,
"msg": "获取图书列表成功",
"data": [
{ "id": "B001", "bookname": "西游记", "author": "吴承恩", "publisher": "北京图书出版社" },
{ "id": "B002", "bookname": "红楼梦", "author": "曹雪芹", "publisher": "上海图书出版社" },
{ "id": "B003", "bookname": "三国演义", "author": "罗贯中", "publisher": "北京图书出版社" }
]
}

1.2 添加图书

  • 接口URL: /api/addbook
  • 调用方式: POST
  • 参数格式:
参数名称 参数类型 是否必选 参数说明
bookname String 图书名称
author String 作者
publisher String 出版社
  • 响应格式:
数据名称 数据类型 说明
status Number 201 添加成功;500 添加失败;
msg String 对 status 字段的详细说明
  • 返回示例:
1
2
3
4
{
"status": 201,
"msg": "添加图书成功"
}

1.3 删除图书

  • 接口URL: /api/delbook
  • 调用方式: GET
  • 参数格式:
参数名称 参数类型 是否必选 参数说明
id String 图书Id
  • 响应格式:
数据名称 数据类型 说明
status Number 200 删除成功;500 未指定要删除的图书Id;502 要删除的图书不存在;
msg String 对 status 字段的详细说明
  • 返回示例:
1
2
3
4
{
"status": 200,
"msg": "删除图书成功!"
}

2.服务器端开发

2.1 vo封装返回结果

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
/**
* 封装 ajax 响应结果
*/
public class AjaxResult {
/**响应状态码 */
private Integer status ;
/**响应消息*/
private String msg ;
/**响应数据 主要是查询接口返回的数据*/
private Object data ;

public AjaxResult(Integer status, String msg) {
super();
this.status = status;
this.msg = msg;
}

public AjaxResult(Integer status, String msg, Object data) {
super();
this.status = status;
this.msg = msg;
this.data = data;
}
}

2.2 pojo

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
public class Book {
private String id ;
private String bookname ;
private String author ;
private String publisher ;
public Book() {
super();
// TODO Auto-generated constructor stub
}
public Book(String id, String bookname, String author, String publisher) {
super();
this.id = id;
this.bookname = bookname;
this.author = author;
this.publisher = publisher;
}
}

2.3 Service

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
public class BookService {
private static Map<String,Book> bookMap = Collections.synchronizedMap(new LinkedHashMap<>()) ;
static {
bookMap.put("B001", new Book("B001","西游记","吴承恩","北京图书出版社")) ;
bookMap.put("B002", new Book("B002","西红楼梦","曹雪芹","上海图书出版社")) ;
bookMap.put("B003", new Book("B003","三国演义","罗贯中","北京图书出版社")) ;
}
public AjaxResult save(Book book) {
//获得随机id
String id = UUID.randomUUID().toString() ;
//设置书籍id
book.setId(id);
bookMap.put(id, book);
return new AjaxResult(201, "添加图书成功") ;
}

public AjaxResult remove(String id) {
if(!bookMap.containsKey(id)) {
return new AjaxResult(500, "502 要删除的图书不存在") ;
}
bookMap.remove(id) ;
return new AjaxResult(200, "删除图书成功!") ;
}

public AjaxResult find(Book book) {
//此次忽略 条件 查询
return new AjaxResult(200, "获取图书列表成功",bookMap.values()) ;
}
}

2.4 Controller

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
@WebServlet({ "/api/getbooks", "/api/addbook", "/api/delbook" })
public class BookController extends HttpServlet {
private static final long serialVersionUID = 1L;
private BookService bookService = new BookService() ;

protected void service(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
request.setCharacterEncoding("UTF-8");
response.setContentType("application/json;charset=UTF-8");
String requestURI = request.getRequestURI() ;
requestURI = requestURI.substring((request.getContextPath()+"/api/").length()) ;
try {
Method m = this.getClass().getDeclaredMethod(requestURI, HttpServletRequest.class,HttpServletResponse.class) ;
AjaxResult ajaxResult = (AjaxResult)m.invoke(this, request,response) ;
String json = JSON.toJSONString(ajaxResult) ;
PrintWriter out = response.getWriter();
out.print(json);
out.flush();
out.close();
} catch (Exception e) {
e.printStackTrace();
}
}

protected AjaxResult getbooks(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
if("POST".equals(request.getMethod())) {
return new AjaxResult(405, "请求的方式不允许!") ;
}
return bookService.find(null) ;
}

protected AjaxResult addbook(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
if("GET".equals(request.getMethod())) {
return new AjaxResult(405, "请求的方式不允许!") ;
}
String bookname = request.getParameter("bookname") ;
String author = request.getParameter("author") ;
String publisher = request.getParameter("publisher") ;
Book book = new Book() ;
book.setBookname(bookname);
book.setAuthor(author);
book.setPublisher(publisher);
return bookService.save(book) ;
}

protected AjaxResult delbook(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
if("POST".equals(request.getMethod())) {
return new AjaxResult(405, "请求的方式不允许!") ;
}
String id = request.getParameter("id") ;
if(id==null || id.equals("")) {
return new AjaxResult(500, "未指定要删除的图书Id") ;
}
return bookService.remove(id) ;
}
}

3. 接口测试

准备工作:

1
2
1. tomcat先启动
2. 安装 postman【默认安装】

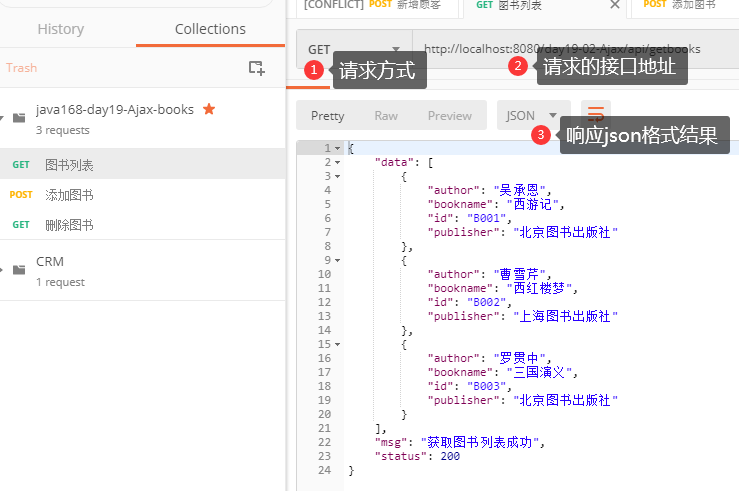

3.1 图书列表

image-20210806085831519

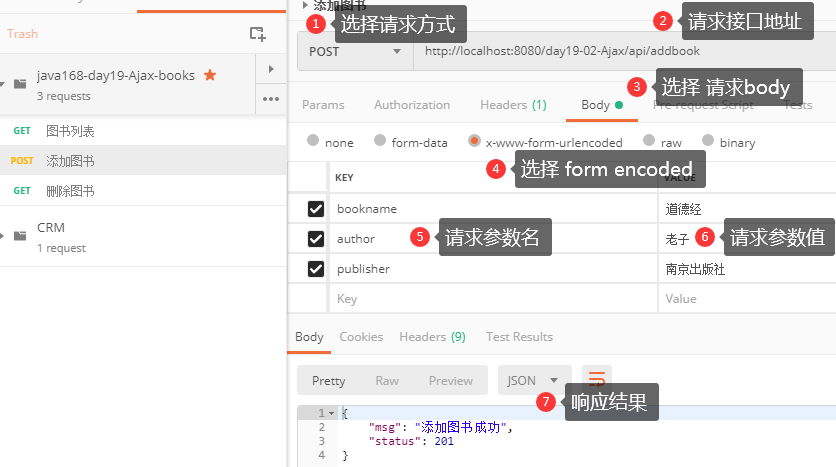

3.2 添加图书

image-20210806085831519

3.3 删除图书

image-20210806085831519

4. Ajax

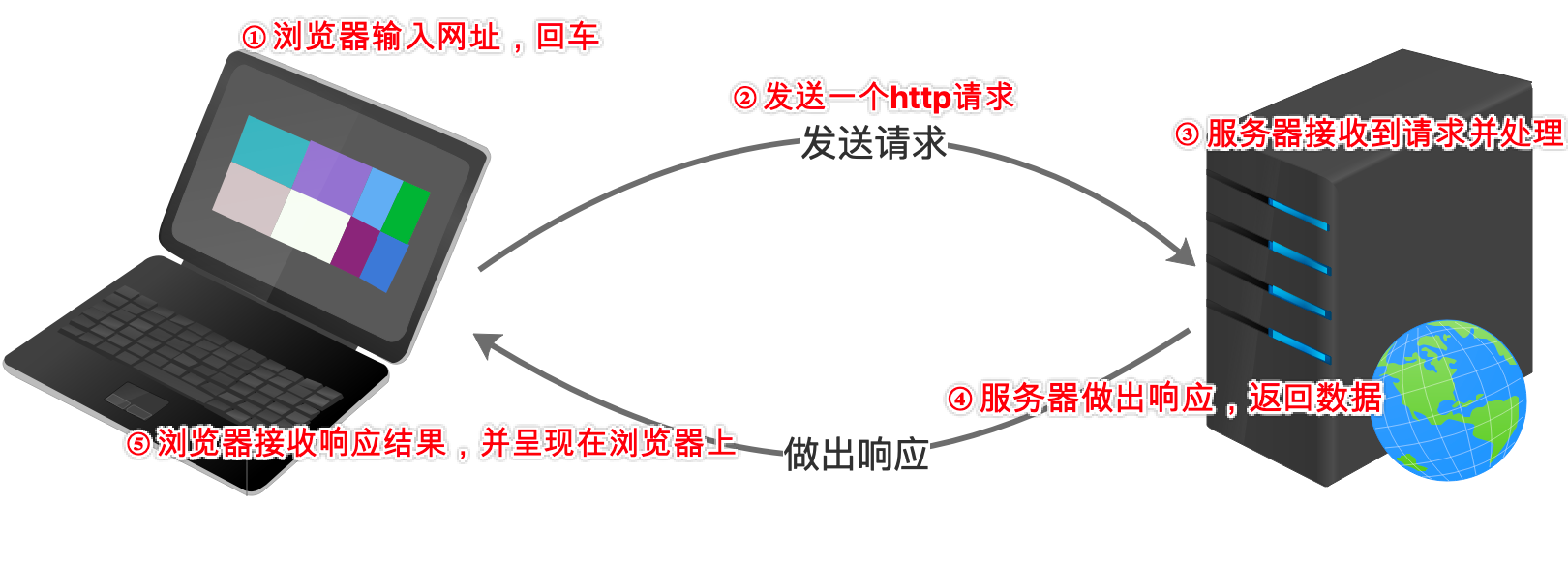

4.1 浏览器/服务器交互模型

image-20210806085831519

4.2 Ajax基本概念

1
2
3
4
HTML是骨架
CSS是颜值
JS是行为
数据是灵魂

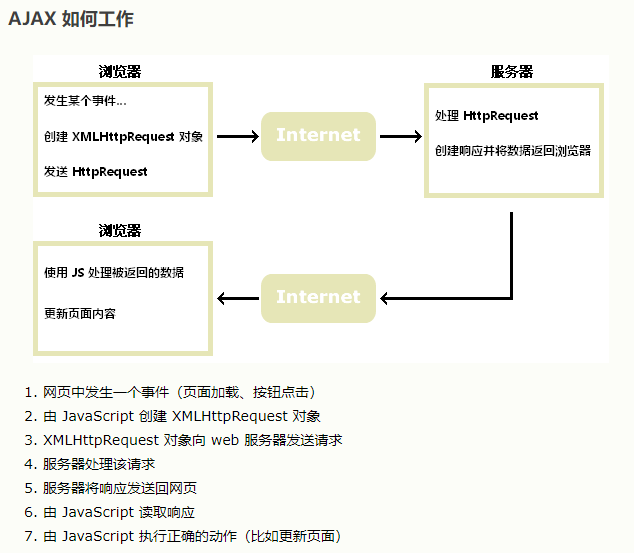

AJAX是异步的JavaScript和XML(Asynchronous JavaScript And XML)。简单点说,就是使用浏览器内置对象 XMLHttpRequest 与服务器通信。

Ajax是一种技术,通过浏览器内置对象和服务器进行数据交互的技术

它可以使用JSON,XML,HTML和text文本等格式发送和接收数据。

AJAX最吸引人的就是它的“异步”特性,也就是说它可以在不重新刷新页面的情况下与服务器通信,交换数据,或更新页面。

你可以使用AJAX最主要的两个特性做下列事:

  • 在不重新加载页面的情况下发送请求给服务器。
  • 接受并使用从服务器发来的数据。

image-20210806085831519

4.3 Ajax请求和浏览器请求

1
2
3
4
5
6
7
8
9
10
11
浏览器请求
是浏览器本能的请求
不需要执行任何JS代码
地址栏输入地址后,按下回车即可发送请求
接收到服务器的响应后,浏览器自动渲染响应结果到页面中
Ajax请求
是通过浏览器内置对象(XHR)完成的
通过执行一段JS代码,才能实现的请求
响应结果由程序员自行处理,浏览器只负责接收响应结果。

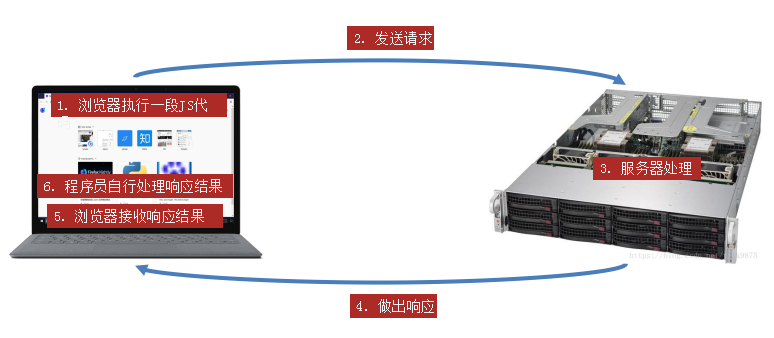

无论是浏览器请求,还是Ajax请求,道理都一样,都符合浏览器 – 服务器交互模型

image-20210806085831519

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Ajax 优点:
可以在不重新刷新页面的情况下与服务器通信,交换数据,或更新页面。
只更新页面的部分数据,节省带宽
用户体验好
异步,不阻塞
不阻塞,Ajax 代码之后的 其他 JS 代码无需等待 Ajax 代码执行完毕,即可执行。
多个Ajax请求可以同时进行。

Ajax 缺点:
1、增加了设计和开发时间
2、比构建经典Web应用程序更复杂
3、AJAX应用程序中的安全性较低,因为所有文件都是在客户端下载的。
4、可能出现网络延迟问题
5、禁用JavaScript的浏览器无法使用该应用程序。
6、由于安全限制,只能使用它来访问服务于初始页面的主机的信息。如果需要显示来自其他服务器的信息,则无法在AJAX中显示

4.4 JQuery封装的ajax方法

$.get()

1
2
3
jQuery 中 $.get() 函数的功能单一,专门用来发起 get 请求,从而将服务器上的资源请求到客户端来进行使用。
$.get() 函数的语法如下:
$.get(url,[data],[success],[dataType])
参数 是否必填 类型 说明
url string 请求资源的接口地址,一般由后端开发工程师提供
data string|array|object 请求参数,由后端提供
success function 请求成功后触发的回调函数,函数的形参为响应结果
dataType string 预期服务器端响应的数据的类型,一般不用设置
1
2
3
4
5
6
7
8
9
10
11
12
13
14
//定义 请求接口地址  及 请求参数
let url = 'http://localhost:8080/day19-02-Ajax/api/getbooks'
let obj = {
id: 1,
bookname: '西游记',
} ;
//发送ajax get 请求
$.get(
url,
obj,
function (res) {
console.log(res)
}
)

$.post()

1
2
3
jQuery 中 $.post() 函数的功能单一,专门用来发起 post 请求,用于向服务器提交资源。
$.post() 函数的语法如下:
$.post(url,[data],[success],[dataType])
参数 是否必填 类型 说明
url string 请求资源的接口地址,一般由后端开发工程师提供
data string|array|object 请求参数,由后端提供
success function 请求成功后触发的回调函数,函数的形参为响应结果
dataType string 预期服务器端响应的数据的类型,一般不用设置
1
2
3
4
5
6
7
8
9
10
11
// 定义路径和参数
let url = 'http://localhost:8080/day19-02-Ajax/api/addbook';
let obj = {
bookname: '三体之地球往',
author: '刘慈欣',
publisher: '中央人民出版社'
};
// 发送post类型的ajax
$.post(url, obj, function (res) {
console.log(res);
});

$.ajax()

1
2
3
4
5
6
7
8
9
$.ajax() - 一个综合的发送Ajax请求的方法,即可以发送GET方式的请求,也可以发送POST方式的请求,还可以根据需求配置更加复杂的Ajax请求,使用频率最高。
$.ajax({
method:'GET|POST', // 请求方式 必填
url:'url接口地址', //请求的接口地址 必填
data:'object|array|string', // 请求参数 ,可选
success:function(res){ //请求成功后的回调函数
res 表示响应结果
}
})
1
2
3
4
5
6
7
8
9
10
11
12
// $.ajax(); 传递的参数是对象;
// 四个关键参数都是一个属性形式存在!
$.ajax({
method: 'GET',
url: 'http://localhost:8080/day19-02-Ajax/api/getbooks',
data: {
id: 1
},
success: function (res) {
console.log(res);
}
})

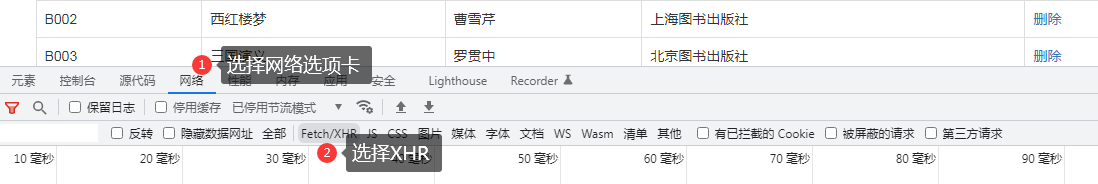

4.5 network工具使用

image-20210806085831519

network工具使用

  • All – 查看所有请求
  • XHR – 查看Ajax请求
  • JS – 查看请求了哪些JS文件
  • CSS – 查看请求了哪些CSS文件
  • Img – 查看请求了哪些图片
  • Media – 查看请求了哪些音频、视频等
  • Font – 查看请求了哪些字体文件
  • Doc – document,查看请求了哪些html文件

4.6 综合案例

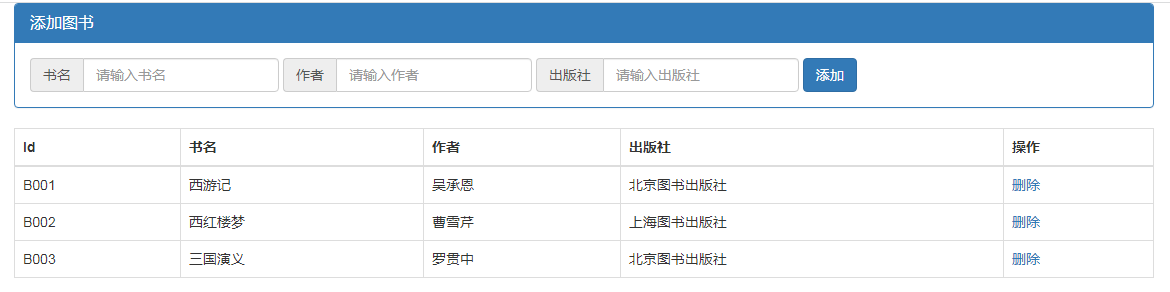

效果图

image-20210806085831519

素材

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
<!-- 套一个 .container 内容就有版心了 -->
<div class="container">
<!-- bootstrap3 => 组件 => 面板 => 带标题的面版 => 情境效果 -->
<div class="panel panel-primary">
<div class="panel-heading">
<h3 class="panel-title">添加图书</h3>
</div>
<div class="panel-body">
<!-- bootstrap3 => 全局CSS样式 => 表单 => 内联表单 -->
<div class="form-inline">
<div class="form-group">
<label class="sr-only" for="exampleInputAmount">书名</label>
<div class="input-group">
<div class="input-group-addon">书名</div>
<input
type="text"
class="form-control"
id="inpBookname"
placeholder="请输入书名"
/>
<!-- <div class="input-group-addon">.00</div> -->
</div>
</div>
<div class="form-group">
<label class="sr-only" for="exampleInputAmount">作者</label>
<div class="input-group">
<div class="input-group-addon">作者</div>
<input
type="text"
class="form-control"
id="inpAuthor"
placeholder="请输入作者"
/>
<!-- <div class="input-group-addon">.00</div> -->
</div>
</div>
<div class="form-group">
<label class="sr-only" for="exampleInputAmount">出版社</label>
<div class="input-group">
<div class="input-group-addon">出版社</div>
<input
type="text"
class="form-control"
id="inpPublisher"
placeholder="请输入出版社"
/>
<!-- <div class="input-group-addon">.00</div> -->
</div>
</div>
<button id="btnAdd" type="submit" class="btn btn-primary">
添加
</button>
</div>
</div>
</div>

<!-- 注意: 第二部分是table标签,要写道 container 里面,panel下面 -->
<!-- bootstrap3 => 全局CSS样式 => 表格 => 带边框的表格 -->
<table class="table table-bordered table-hover">
<thead>
<tr>
<th>Id</th>
<th>书名</th>
<th>作者</th>
<th>出版社</th>
<th>操作</th>
</tr>
</thead>
<tbody>
<tr>
<td>1</td>
<td>西游记</td>
<td>吴承恩</td>
<td>北京图书出版社</td>
<td><a href="javascript:;">删除</a></td>
</tr>
</tbody>
</table>
</div>

5. CORS 错误

跨源资源分享(CORS)是一种允许服务器放宽同源策略的标准。这用于明确允许一些跨源请求,同时拒绝其他请求。例如,如果站点提供外界嵌入的服务,则可能需要放宽同源策略。设置这样的 CORS 配置并不一定容易,并且可能存在一些挑战。在这些页面中,我们将研究一些常见的 CORS 错误消息以及如何解决它们。

如果未正确设置 CORS 配置,浏览器控制台将显示错误,例如 “Cross-Origin Request Blocked: The Same Origin Policy disallows reading the remote resource at $somesite” 表示请求因违反 CORS 安全规则而被阻止。但这可能不一定是设置错误。因为用户的 Web 应用程序和远程外部服务可能故意禁止该请求。如果要使端点可用,则需要进行一些调试才能成功。

什么是跨域问题

前端调用的后端接口不属于同一个域(域名或端口不同),就会产生跨域问题,也就是说你的应用访问了该应用域名或端口之外的域名或端口。

服务器端 开启跨域

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
/**
* 功能描述:解决跨域过滤器
*/
@WebFilter("/api/*")
public class CORSFilter implements Filter {
private final int time = 20*24*60*60;

public void init(FilterConfig fConfig) throws ServletException {

}

public void doFilter(ServletRequest request, ServletResponse response, FilterChain chain) throws IOException, ServletException {
HttpServletResponse resp = (HttpServletResponse) response;
// 添加参数,允许任意domain访问
resp.setHeader("Access-Control-Allow-Origin", "*");
// 这个allow-headers要配为*,这样才能允许所有的请求头
resp.setHeader("Access-Control-Allow-Headers", "*");
resp.setHeader("Access-Control-Allow-Methods","PUT,POST,GET,DELETE,OPTIONS");
resp.setHeader("Access-Control-Max-Age", time+"");
chain.doFilter(request, resp);
}


public void destroy() {

}

}

评论
